How It Works:

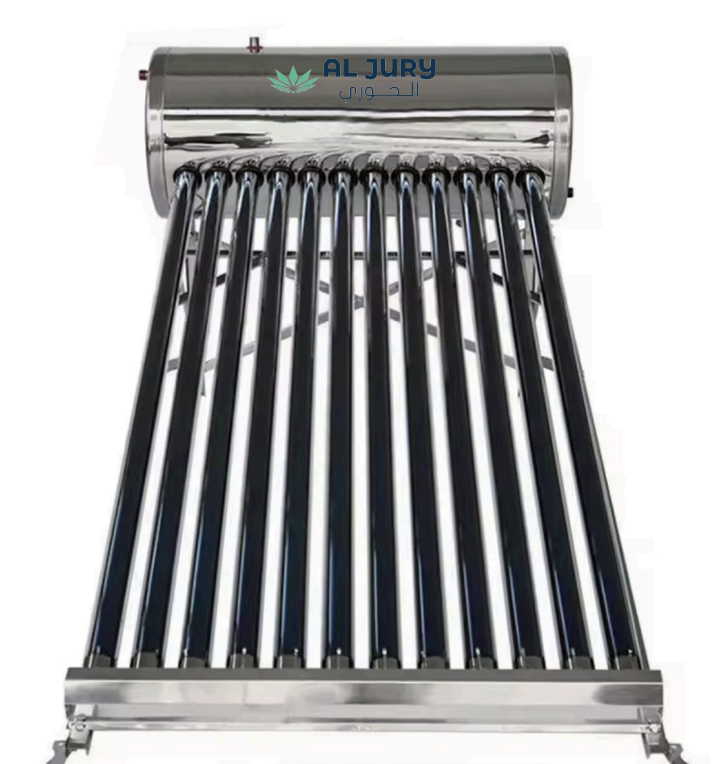

The Al Jury Solar Water Heater uses solar collectors to capture sunlight and convert it into heat. This heat is then transferred to water stored in an insulated tank, ensuring a steady supply of hot water throughout the day. The system can be used as a standalone solution or to supplement your existing water heater, providing flexibility and efficiency.
|
Inner liner material |
Food grade SUS304 2B or SUS316L |
|
Inner tank diameter |
Ф360;370mm;380mm;420mm |
|
Inner tank thickness |
0.31mm; 0.38mm; 0.4mm |
|
Material of outer tank |
SUS304;SUS316 |
|
Outer tank diameter |
460mm;470mm;480mm;520mm |
|
Inner tank thickness |
0.4mm 0.45mm 0.5mm |
|
Number of tubes |
8/10/12/15/18/20/24/30/32/36/40 |
|
Frame (bracket section) |
Galvanized sheet, stainless steel or aluminum alloy |
|
Insulation thickness |
50mm. 55mm, 60mm |
